ROV-500, affectionately referred to as “Squirt”, is Outland Technology’s smallest ROV to date and comes with a single, briefcase for the console and power supply. But don’t let Squirt’s compact size fool you. The control system was designed to maximize the power of brushless, DC-flooded thrusters in order to yield a high thrust to weight ratio. And there you go, a compact design that continues to deliver at Outland’s high standards of performance.

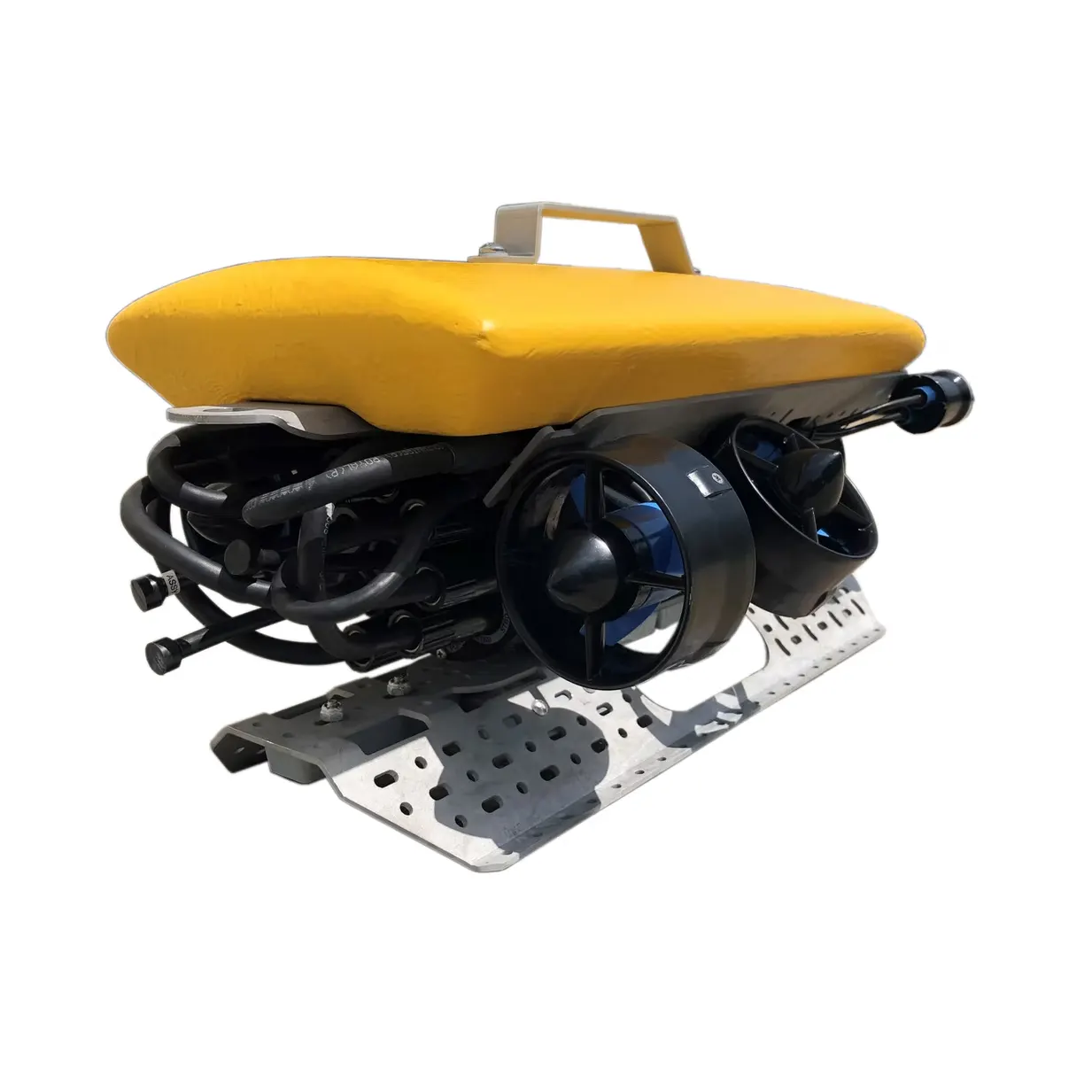

ROV-500
Call for Price
Description
Features:
- 300 m (1,000 ft) depth rating
Ruggedly built for deep-water tasks and inspections across offshore, marine, and scientific operations. -
High thrust-to-weight ratio
Powered by four 350 W brushless, flooded thrusters—designed with Outland’s custom control system to maximize performance in a compact package. -
Tilting 1080p HD front camera
Enhanced situational awareness with high-resolution, tiltable visual capability. -
Two high-power LED lights
Totaling 3,000 lumens (1,500 lumens each), for clear vision in low-light underwater environments. -
Single-function manipulator included
Perfect for light intervention tasks such as valve turning, sampling, or hook handling. -
Neutrally buoyant 100 m tether standard
Includes a 330 ft tether rated to 230 lb working load, with options up to 300 m (1,000 ft). -

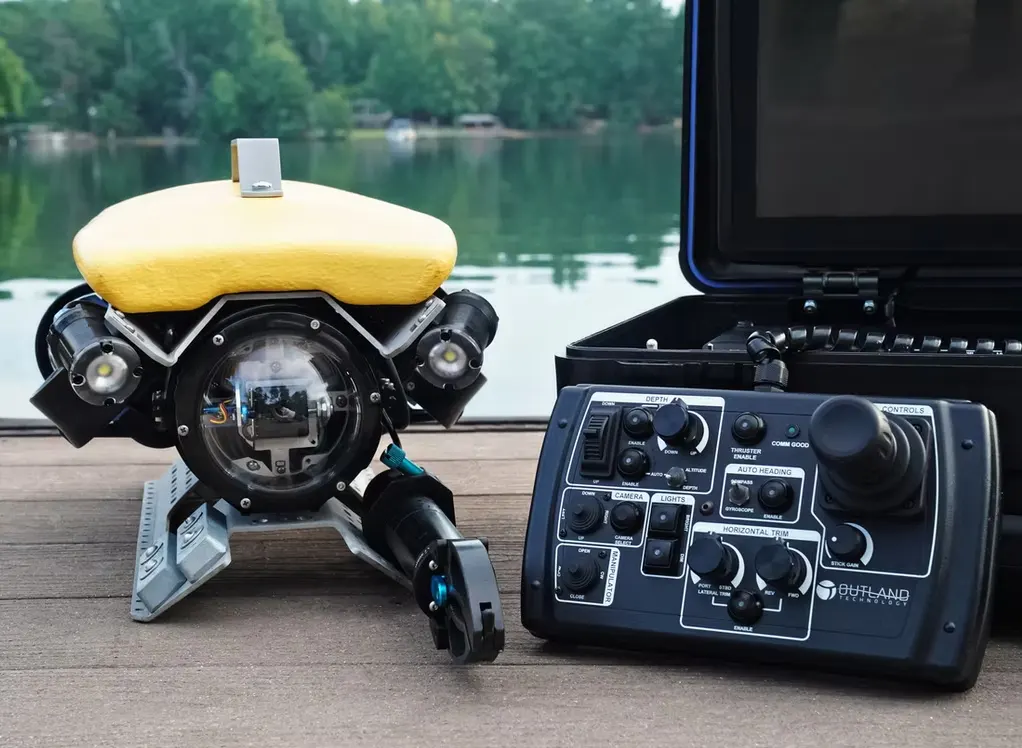

Portable, all-in-one control console
Compact CON‑500 suitcase-style surface unit houses power supply, 15″ sun‑readable monitor (2,000 nits), 4‑channel DVR, onboard overlays (time/date, heading, depth, diagnostics) in a rugged waterproof case. -
No batteries—continuous 24/7 operation
Designed for round-the-clock deployment without downtime from recharging. -
Modular expandability
Compatible with additional sonar, external cameras, altimeters, CP probes, navigation sensors, and more.
