Low Pressure Air Control System for 2-Divers

Call for Price

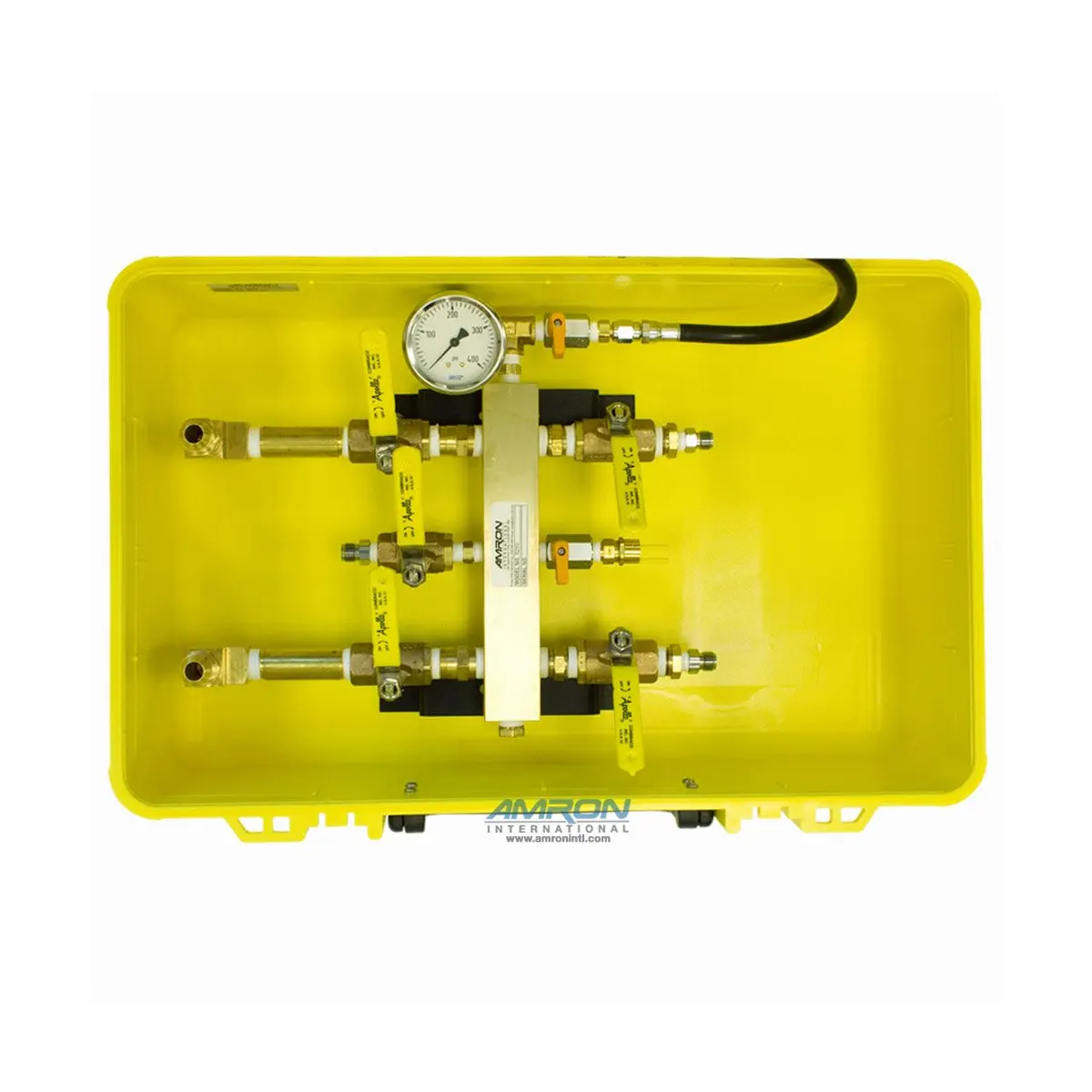

The Amron International 8250 Two-Diver Low Pressure Air Control System is a central control point for the supply of breathing air for up to two commercial divers. The air control system was designed and built for quick setup and breakdown and its compact design maximizes its mobility.

The 8250 is a cost-effective product intended for customers who primarily use low pressure compressors to supply air to the divers.

WARNING: DO NOT USE THE AMRON 8250 FOR THE FOLLOWING

Mixed gas diving operations with an oxygen level greater than 25%.
Oxygen or oxygen enriched breathing mixtures above 25%.

Download User Manual

Description

Features

Quick setup and breakdown.
Compact design maximizes mobility.
Intended for those who primarily use low pressure compressors to supply air to the divers.

Amron 8250 Low Pressure Air Control System for 2-Divers Includes

(1) Brass Manifold
(2) Air Inlets, #10 JIC Fitting
(2) Air Outlets, 9/16-18 in. Oxygen Fitting
(1) Emergency Air Inlet, 9/16-18 in. Oxygen Fitting
(2) Brass Check Valves
(1) Relief Valve
(2) 6 in. Dual Scale 0-250 FSW/0-76 MSW, 1/2% Accuracy, 3DI Precision Depth Gauge
(2) Pneumo Gauge Outlets, 9/16-18 in. Oxygen Fitting
(1) 0-400 PSI Stainless Steel Pressure Gauge – Accuracy +/- 1.5%
(1) Durable Plastic Case
